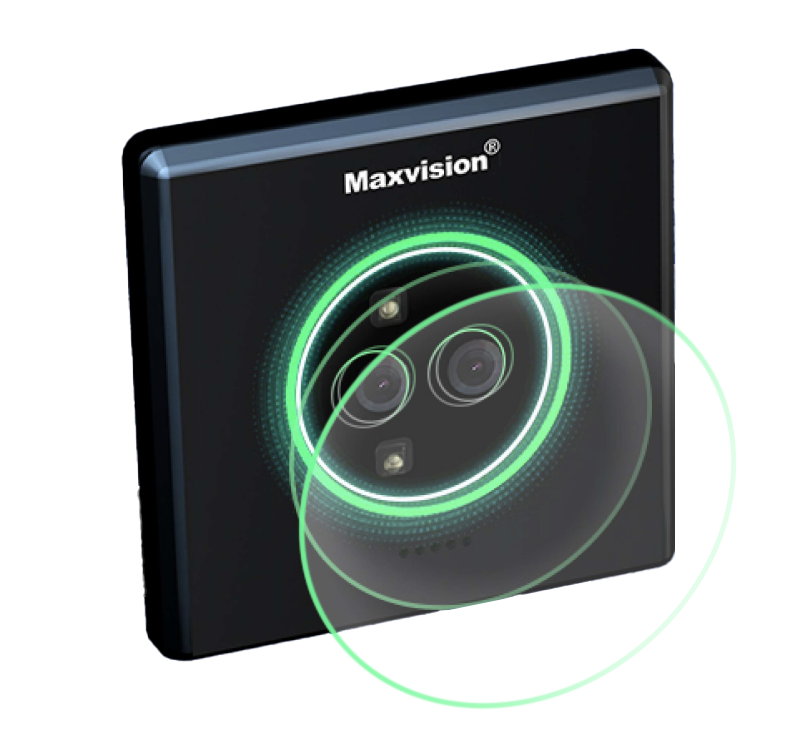

Embedded Palm Vein Recognition Terminal is a biometric identification terminal based on Linux operating system launched by our company. It uses infrared imaging technology and integrates visual and optical technology to obtain the palm vein image accurately. It is equipped with a self-developed AI recognition algorithm to achieve high-security biometric identification. This terminal has many significant advantages such as extremely high security, non-contact identification, liveness detection, embedded installation, and multi-scenario applicability. It can be wall-mounted and embedded in systems such as access control, gates, and self-service terminals. It is widely used in communities, buildings, customs, border defense, ports and other places where personnel access is controlled.
| MV-A100BB | MV-A100BC | MV-A100BE | MV-A100BG | |
|---|---|---|---|---|
| Equipment Library Capacity | Palm Vein 100 | Palm Vein 1000 | Palm Vein 10000 | Palm Vein 50000 |
| Storage Records | 50000 | 100000 | 200000 | |
| Structure | Integrated Molding, ABS Structure | |||
| Operating System | Linux | |||
| Palm Vein Recognition Accuracy | FAR<0.0001%,FRR<0.4% | |||
| External Communication | Standard: LAN, RS232, relay output, key input, Bluetooth/Wi-Fi Optional: NFC, Wiegand in/out | |||
| Operating Voltage | DC12V/2A | DC12V/2A, POE(Optional) | ||
| Operating Temperature | -20~60°C | |||
| Storage Temperature | -30~70°C | |||
| Working Humidity | 10%RH~95%RH | |||
| Operation Environment | Indoor/Outdoor | |||
| Installation | Wall Mounting or Mounting Box | |||
| Size | 86*86*30mm | |||
