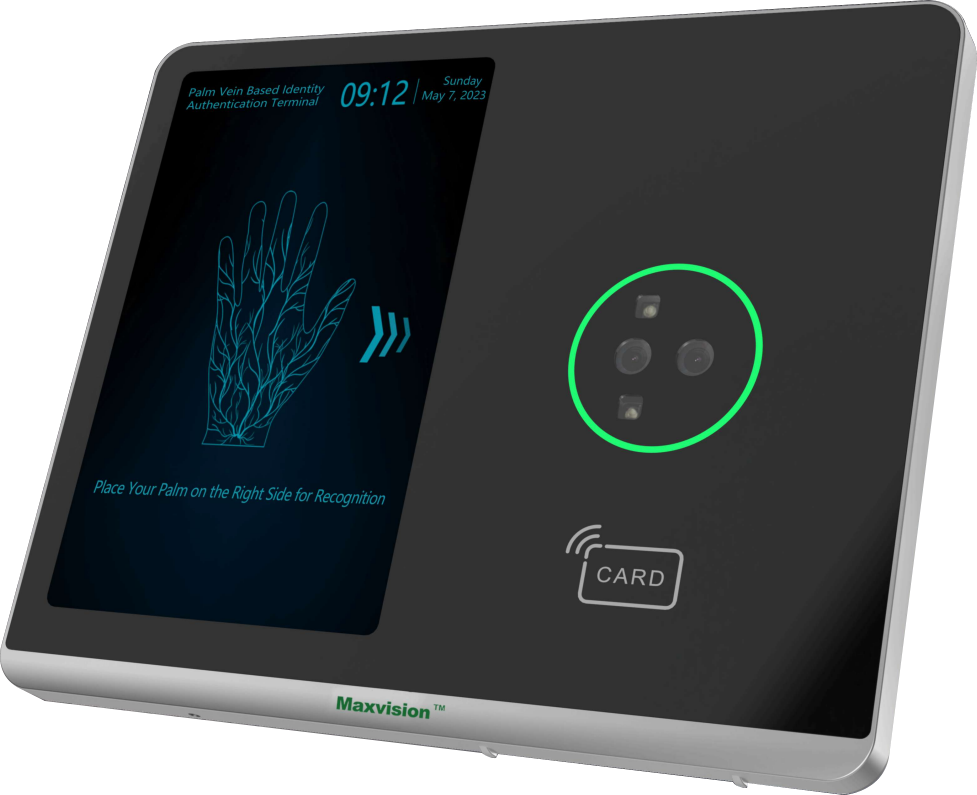

Maxvision Palm Vein MV-A107 Series

Description

Palm Vein Recognition Terminal is a biometric identification terminal based on Linux operating system launched by our company. It uses infrared imaging technology and integrates visual and optical technology to obtain the palm vein image accurately. It is equipped with a self-developed AI recognition algorithm to achieve high-security biometric identification. This terminal has many significant advantages such as extremely high security, non-contact identification, liveness detection, backlight recognition and strong anti-interference ability. It can be can be wall-mounted or desktop-mounted and integrated into other systems such as access control, gates, and self-service terminals. It is widely used in communities, buildings, customs, border defense, ports and other places where personnel access is controlled.

Specification

ModelMV-A107ACMV-A107AEMV-A107AG
Equipment Library CapacityPalm Vein/IC Card/ Password 1000 EachPalm Vein/IC Card/ Password 10000 EachPalm Vein/IC Card/ Password 50000 Each
Storage Records50000200000
Operating VoltageDC12V/2ADC12V/2A OE(Optional)
Device Screen7-inch High-definition Touch Screen
Screen Resolution1280*800 Resolution; 800:1 Contrast Ratio
Operating SystemLinux
Palm Vein Recognition AccuracyFAR<0.0001%,FRR<0.4%
External CommunicationStandard: LAN, RS232, Relay Output, Support Offline Use
Optional: 4G, Bluetooth, Wi-Fi, RS485, Wiegand in/out, USB
Operating Temperature-20°C~60°C
Storage Temperature-30°C~70°C
Working Humidity10%RH~95%RH
Operation EnvironmentIndoor/Outdoor
InstallationWall-mounted or Desktop-mounted
Size221.4*181.4*25.8mm
